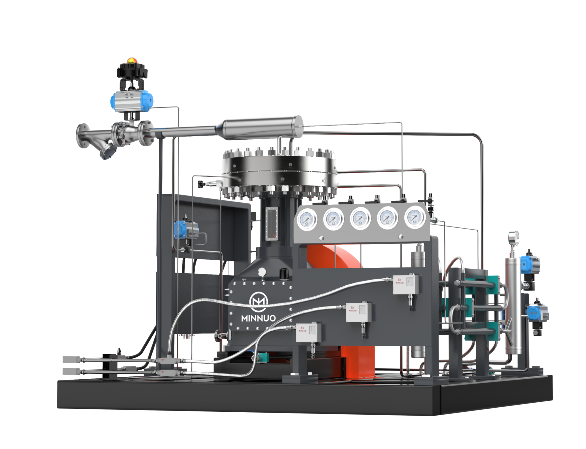

Our diaphragm compressors are engineered to meet the demanding needs of hydrogen applications.

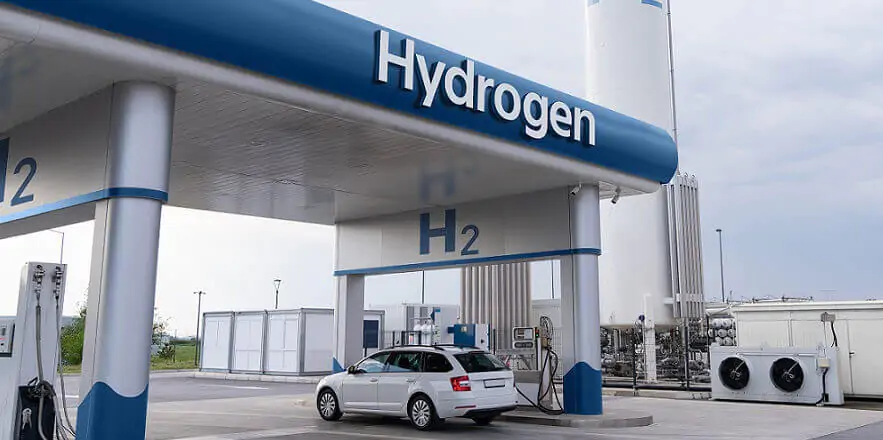

From hydrogen refueling stations to cylinder filling, storage & transportation, and fuel cell supply, we provide safe, reliable, and oil-free compression solutions trusted worldwide. Our machines deliver stable performance under ultra-high pressures, ensuring hydrogen purity and safety at every stage.

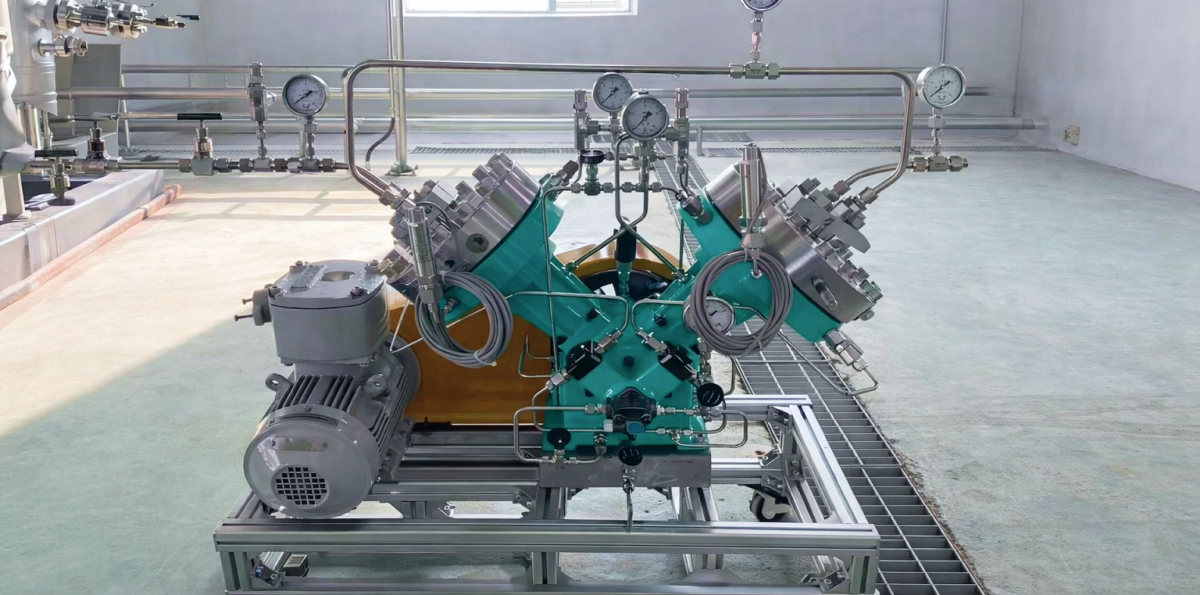

Reliable Solution for Hydrogen Compression
Bullet Points
Handle pressures up to 1000 bar
Oil-free compression for ultra-pure hydrogen
Long service life with low maintenance
CE / ISO / ASME certified for global compliance
Contact us today
for your customized
hydrogen compression solution.
for your customized
hydrogen compression solution.
Versatile Applications Beyond Hydrogen
While hydrogen is a primary focus, our diaphragm compressors are also widely used across other critical gases and industries.

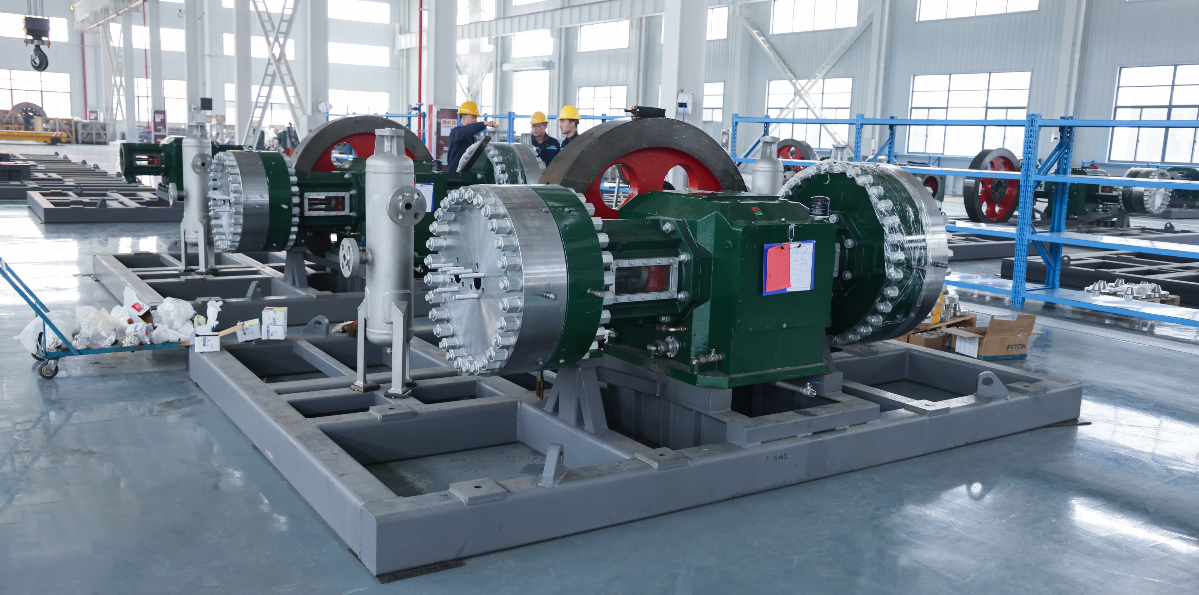

N₂
Nitrogen
For food packaging, electronics, and chemical industries.
O₂
Oxygen
For medical, aquaculture, and industrial processing.
He
Helium
For leak detection, electronics, and aerospace.
Kr & Xe
Krypton (Kr) & Xenon (Xe)
For lighting, medical imaging, and semiconductor industries.
CO+H₂
Syngas
For chemical synthesis, fuel production, and industrial energy.
What is Diaphragm Compressor ?
Diaphragm compressors are classified from reciprocating compressors.
A diaphragm compressor is a specially constructed volumetric compressor that uses a rotating diaphragm to compress air or gas. The rotating diaphragm helps to deliver air or gas within the compression chamber and applies the required pressure to deliver air in the desired area.
A diaphragm compressor is a specially constructed volumetric compressor that uses a rotating diaphragm to compress air or gas. The rotating diaphragm helps to deliver air or gas within the compression chamber and applies the required pressure to deliver air in the desired area.
The cylinders are highly sealed, no lubrication is required, and the compressed gas medium avoids contact with any lubricant, so diaphragm compressors can compress gases of very high purity, typically up to 99.999% purity. Diaphragm compressor is especially suitable for the compression, transport, bottling of precious and rare gases, in addition to extremely corrosive, toxic, flammable and explosive, radioactive gases, also suitable for the use of diaphragm compressor.
Why Choose Minnuo Diaphragm Compressor?

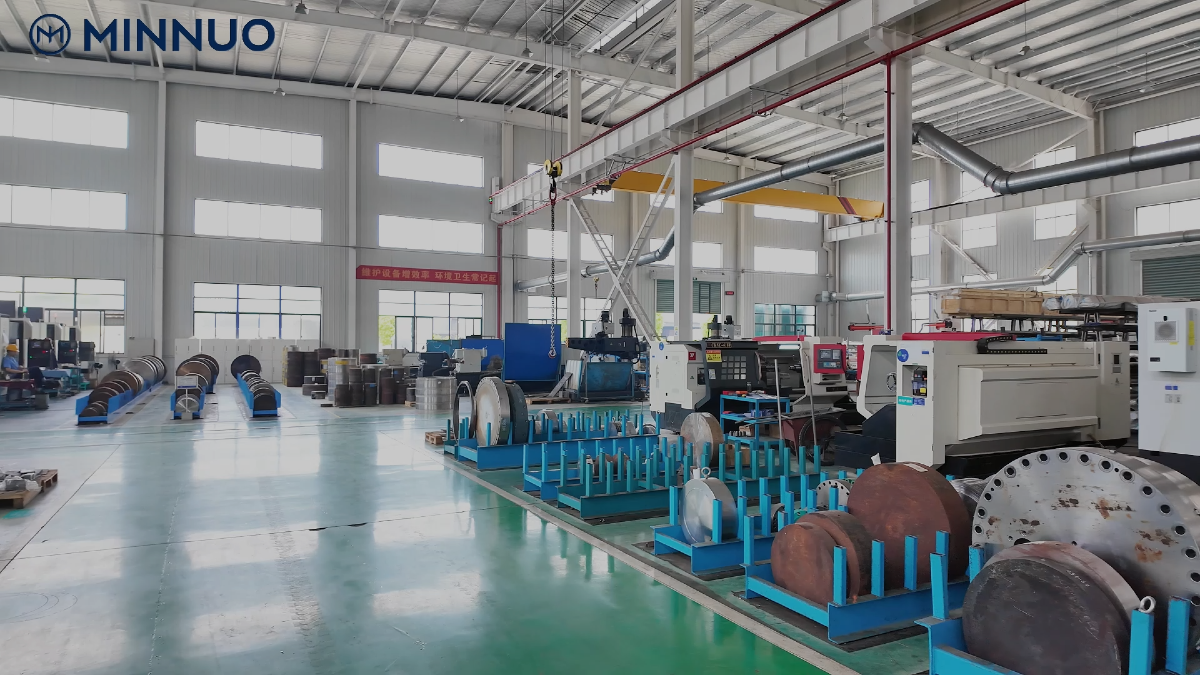

Established in 1987, Min Group has been developing and manufacturing industrial diaphragm gas compressors. They are the preferred equipment for high purity, hermetic gas lift compression for hydrogen fuel stations, chemicals, oil, and gas, etc. We have developed H, D, L, V, and Z models and more than 30 product series for intelligent diaphragm gas compression systems.

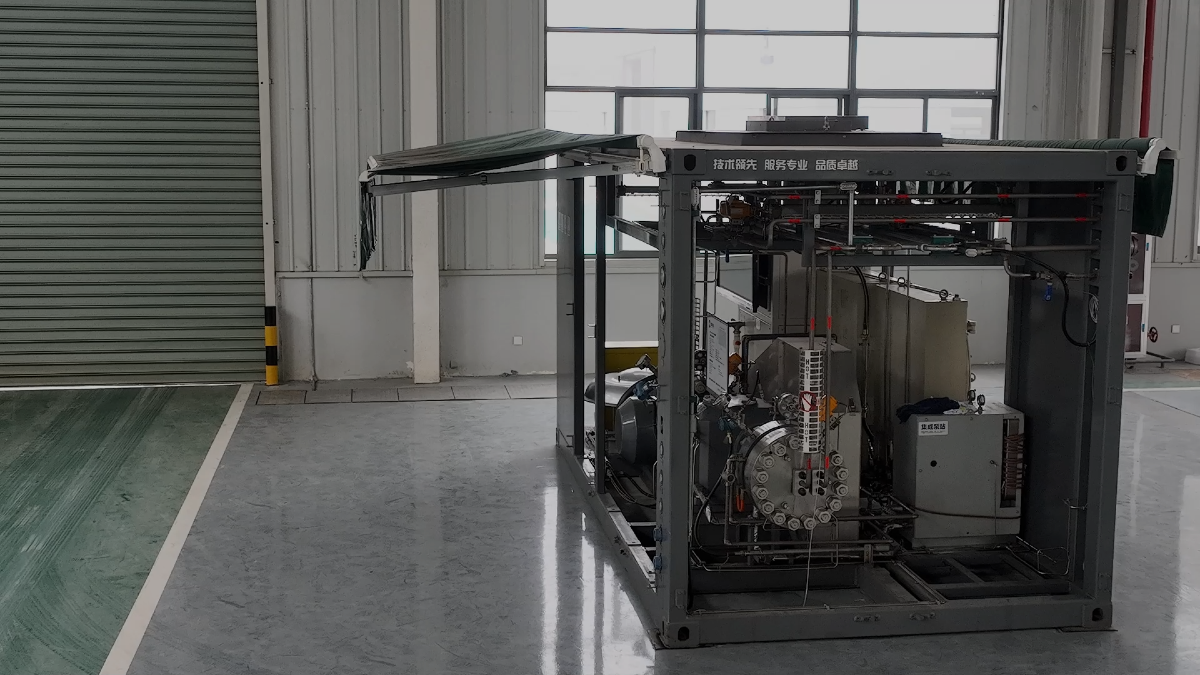

We can design and manufacture full instrumentation oil-free reciprocating diaphragm gas compression systems according to customer requirements.
Sizes range from 3 hp (2 kW) – 250 hp (186 kW). Output pressures range from 50 psi- 45,000 psi (3,100 bar).
We can design and manufacture full instrumentation oil-free reciprocating diaphragm gas compression systems according to customer requirements.
Sizes range from 3 hp (2 kW) – 250 hp (186 kW). Output pressures range from 50 psi- 45,000 psi (3,100 bar).
MINNUO's diaphragm compressor can ensure that the gas and hydraulic oil are completely out of contact.
MINNUO will provide a detailed and complete maintenance plan for each machine.
MINNUO will conduct a series of tests on the compressor before it leaves the factory, including: explosion-proof test, raw material test, water pressure test, no-load and full-load test, etc.
MINNUO's compressor has comprehensive protection and alarm functions to ensure on-site safety.
Select Your Model

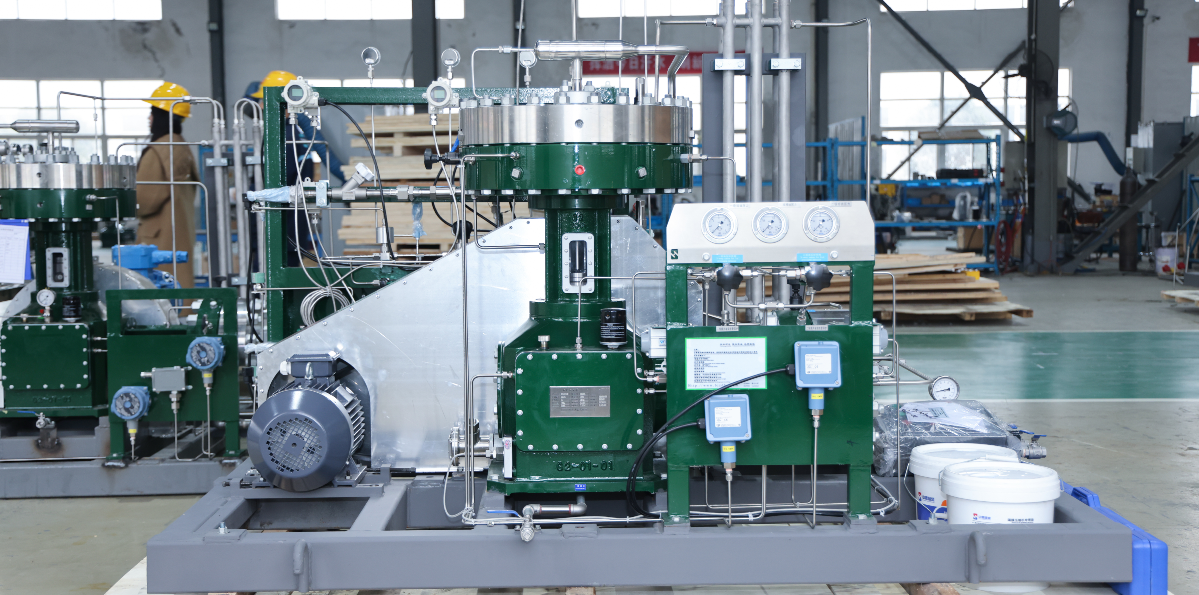

G1 Small diaphragm compressor
- Structure: Z, L, P, D-type
- Lubrication: splash
- Oil type: compulsory oil supplement
- Cooling way: water cooled or air cooled
- Maintenance maximum weight per piece: 80kg
- Maintenance maximum space: the circle shall be not less than 1 m
| Product Model | Volumetric Flow | Intake Pressure | Exhaust Pressure | Water Consumption | Crankshaft Speed | Motor Power | Dimension | Unit Weight |
|---|---|---|---|---|---|---|---|---|
| (Nm³/h) | (MPa(G)) | (MPa(G)) | (L/H) | (r/min) | (KW) | (L×W×H)（MM） | (KG) | |
| GD0-3/200 | 3 | ATM | 20 | / | 750 | 2.2 | 600×500×400 | 200 |
| GL1-5/200 | 5 | ATM | 20 | 300 | 600 | 3 | 1350×600×950 | 550 |
| GL1-10/13 | 10 | ATM | 1.3 | 300 | 600 | 3 | 1350×600×950 | 550 |
| GL1-10/13-200 | 10 | 1.3 | 20 | 300 | 600 | 3 | 1350×600×950 | 550 |
| GL1-5/1-160 | 5 | 0.1 | 16 | 300 | 450 | 3 | 1350×600×950 | 550 |
| GL1-10/4-160 | 10 | 0.4 | 16 | 400 | 600 | 4 | 1350×600×950 | 520 |
| GL1-8/2.5-160 | 8 | 0.25 | 16 | 400 | 400 | 3 | 1350×600×950 | 520 |
| GL1-10/6-160 | 10 | 0.6 | 15 | 400 | 400 | 4 | 1350×600×950 | 520 |
| GL1-5/6-200 | 5 | 0.6 | 20 | 300 | 400 | 3 | 1350×600×950 | 520 |
| GL1-10/6-160 | 10 | 0.6 | 16 | 400 | 400 | 4 | 1350×600×950 | 520 |
| GL1-5/13-400 | 5 | 1.3 | 40 | 300 | 400 | 3 | 1350×600×950 | 500 |
| GL1-15/10-150 | 15 | 1 | 15 | 400 | 450 | 4 | 1350×600×950 | 520 |
| GL1-10/7-320 | 10 | 0.7 | 32 | 400 | 450 | 4 | 1350×600×950 | 520 |
| GL1-5/4-350 | 5 | 0.4 | 35 | 300 | 400 | 3 | 1350×600×950 | 520 |
| GZ1-5/13 | 5 | ATM | 1.3 | 200 | 450 | 1.5 | 1100×600×950 | 450 |
| GZ1-5/13-200 | 5 | 1.3 | 20 | 200 | 450 | 1.5 | 1100×600×950 | 420 |
| GZ1-5/30-400 | 5 | 3 | 40 | 300 | 400 | 3 | 1100×600×950 | 400 |
| GZ1-70/30-35 | 70 | 3 | 3.5 | 200 | 400 | 4 | 1100×600×950 | 420 |
— Technology Features —
1
Compact transmission components for smoother operation. 2
Optimized oil system design eliminates oil leaks. 3
High energy efficiency, energy conservation, and environmental protection. 4
Advanced membrane cavity curve and Hoerbiger air valve significantly increase the designed life of vulnerable parts, such as the diaphragm and air valve. 5
Highly automated control system. 6
Diaphragm leak alarm ensures safe operation. Case Project

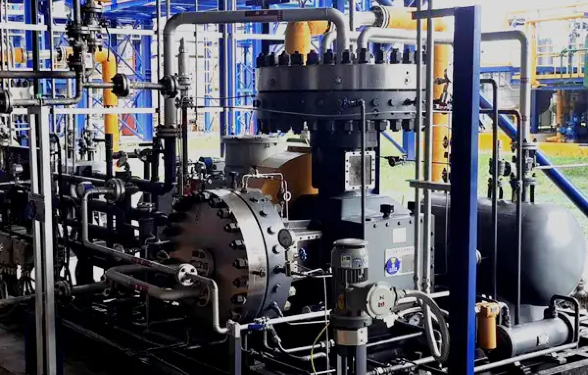

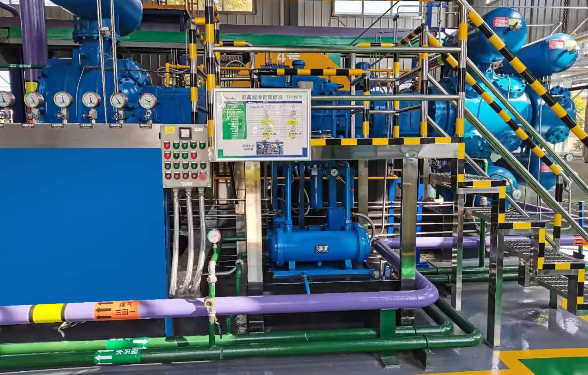

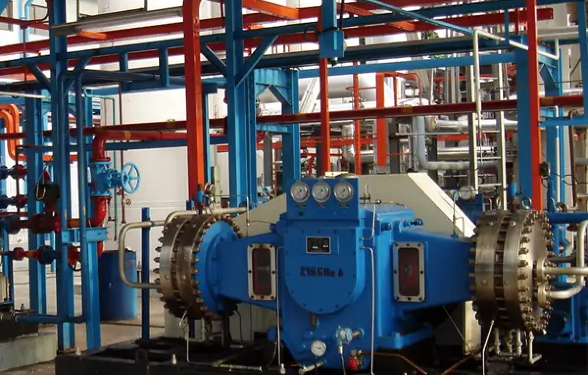

2000Nm³/h hydrogen production and delivery integration project
20MPA Hydrogen Compressor

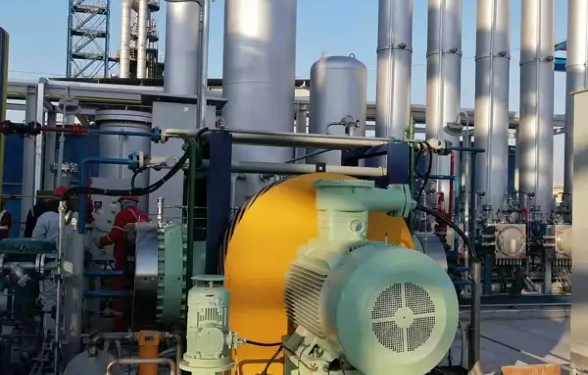

3000Nm³/h Coal to Hydrogen Project
Hydrogen Filling Diaphragm Compressor Project
